Application

Dryer Belts – Screen print & Textiles
Release Time : Oct 23, 2025
Number of clicks :

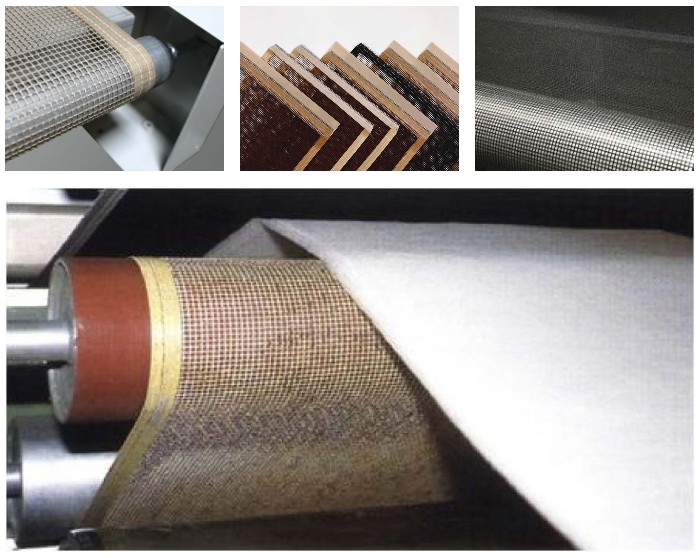

Open mesh products are used as they allow maximum heat flow through the product to be dried after washing or colour dying and are normally used in traditionally heated ovens such as gas and oil fired.

Solid and mesh belts are both used in the screen-printing process when the textile is being carried through an oven to heat set a screen-printed ink. This can be on clothing or rolls of textiles and although traditional heat can be used UV light drying is also common. Black fabrics are more commonly used for UV drying as they do not absorb the UV light.

Antistatic fabrics (AS) are often used in textile drying due to their high thermal conductivity, which provides optimal heat transfer. They are often used in applications where static electricity accumulates on the surface and needs to be dissipated, such as wallpaper drying, which occurs very quickly and generates high levels of static electricity. Antistatic materials are also called static dissipative materials.


ProductStandard width [mm]Nominal thickness [mm]Weight [g/m2]
725532000,740
445
7255AS28000,740
445
73052700, 3200, 3700, 44001,000
460
7305DF ST34001,100
630
7305AS32001,000
460
7405DF34001,200
600
7305K (4x4mm)26000,770
310
7305KG (4x4mm)36001,150
644
7195K Porous (1x1mm)23000,630
380
7305K (4x2mm)10501,000
400
71481000, 1500, 2000, 2400, 2600, 33000,340
680
720820000,450
880
7278 AR2100, 26000,670
1085


Technical data above is based on our general experience and is given in good faith. We are however unable to accept responsibility in respect of factors which are outside our knowledge or control. All data is subject to change without notice. Some items may not be on stock and/or a minimum order quantity may apply.
